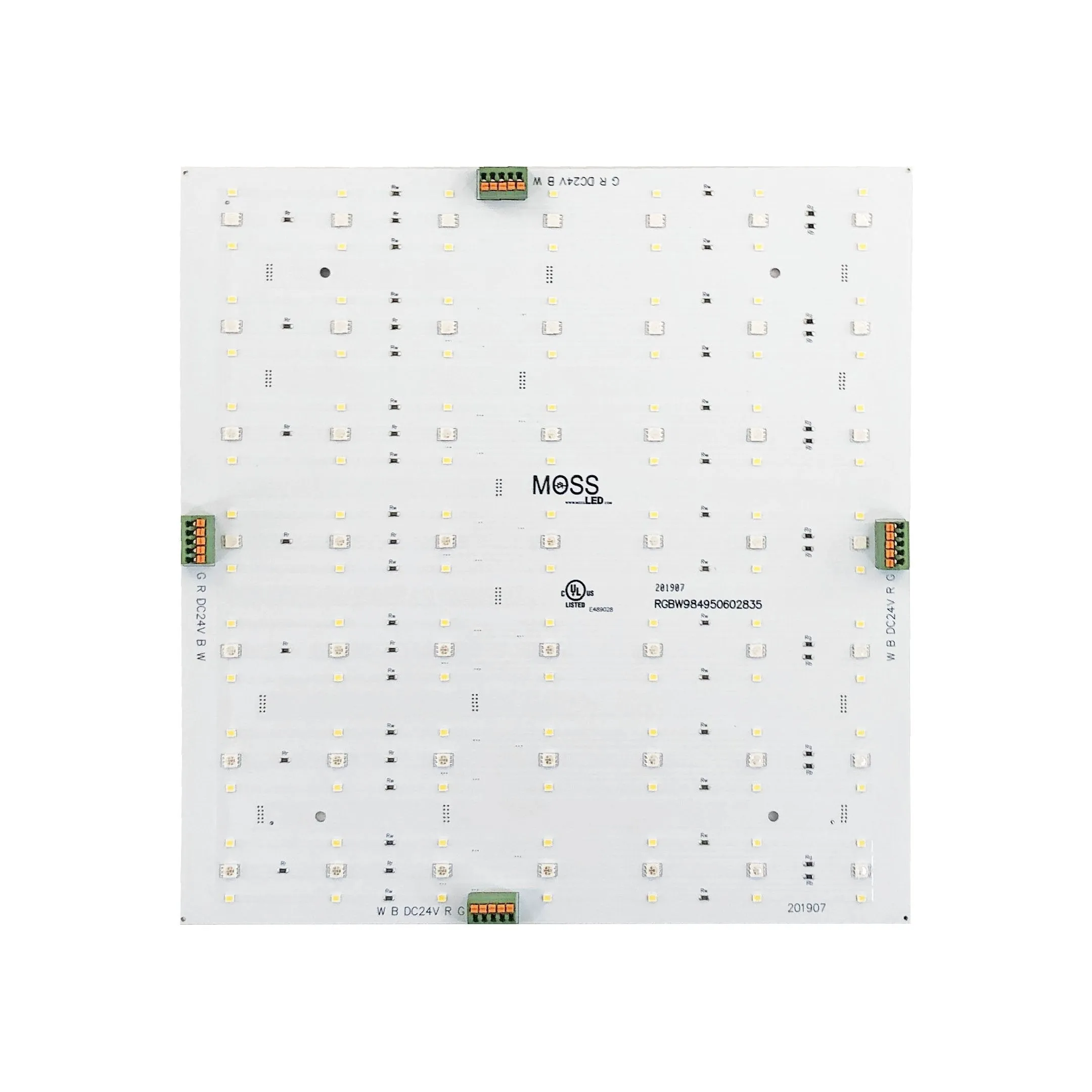

A high output RGB W 1' x 1' panel. 49 X RGB and 98 X 4100k LEDs provide a nice even output for backlighting and downlighting. This is a rigid panel with LEDs mounted on an FR4 PCB which provides fantastic heat dissipation properties. Four mounting holes allow for quick and easy installation onto almost any surface.
Spring-loaded terminal blocks on each side of the panel allow easy connection to any wire from 14 to 20 AWG. Pair this item with our male and female tails for even faster connections.
Non-Stock Item. Please contact us for availability.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB W (4100k) |
| Product Code | : | RGBW984950602835 |
| CRI | : | 95 |
| Kelvin | : | 4100k |
| PCB Color | : | White |
| Current, Rating | : | 1.29A / panel |
| Voltage | : | 24 VDC |
| Wattage | : | 31W / panel |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | TBD |
| Lumen / Watt | : | 91.6 |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | Cannot be cut |
| LED Quantity | : | 147 LED / panel (49x RGB & 98x 4100k) |
| Number of Contacts | : | 5 (in each connector x4) |
| LED Types | : | 5050 2835 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70° C |
| Temperature, Operating, Minimum | : | -40° C |
| Agency Ratings | : | UL, CE, UKCA, RoHS |
| PCB Dimensions (WxH) | : | 1x1' nominal (290x300mm or 11.4x11.8") |
| Maximum Recommended Panels | : | 4 Panels |
| Viewing Angle | : | 120 degree |
| Adhesion | : | 4 x 3.9mm (5/32") Mounting Holes Provided Mechanical Fasteners Sold Separately |
DOWNLOADS
- Specification Sheet Pending
*nominal lifetime - dependent on installation location
