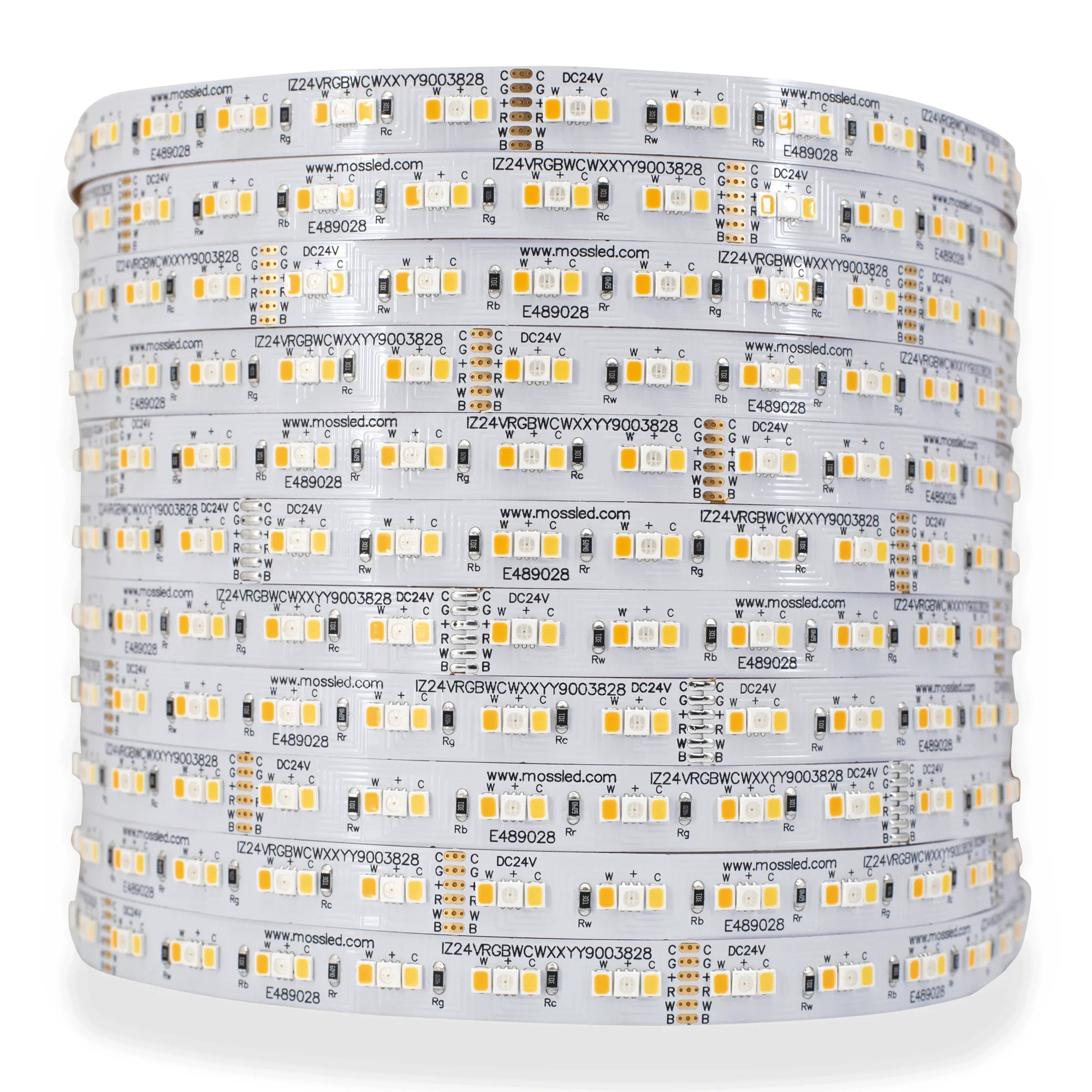

Brand new product for 2019 and celebrating our 10th anniversary we are pleased to announce this new strip which has a new feature.
The first feature is our new 3838 RGB chip which packs the same power output as our 5050 RGB chip but in a 24% smaller footprint.
Pricing is for 5 meters (16.4')
Soldering Guidelines:
Soldering iron should be between 360 and 372°C (680-700°F). Please ensure not to heat solder pads for longer than 3 seconds otherwise separation of the solder pads can occur.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB WW CW |
| Product Code | : | I24VRGBWCW27609003828 |
| CRI | : | 95 |
| CCT | : | 2700 /-100K AND 6000 /- 100K |
| PCB Color | : | White |
| Current, Rating | : | 0.95 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 23.5 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 2000 lm / meter |
| Lumen / Watt | : | 87 |
| Lifetime* | : | 40,000 hours |
| Cutting Length | : | 10 CM |
| LED Quantity | : | 180 LED / meter |
| Number of Contacts | : | 6 |
| LED Type | : | 3838 2835 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL E489028, CE, RoHS |
| PCB Width | : | 12 MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 |
| Adhesion | : | TESA 4965 |
DOWNLOADS
- Specification Sheet Pending
*nominal lifetime - dependent on installation location
